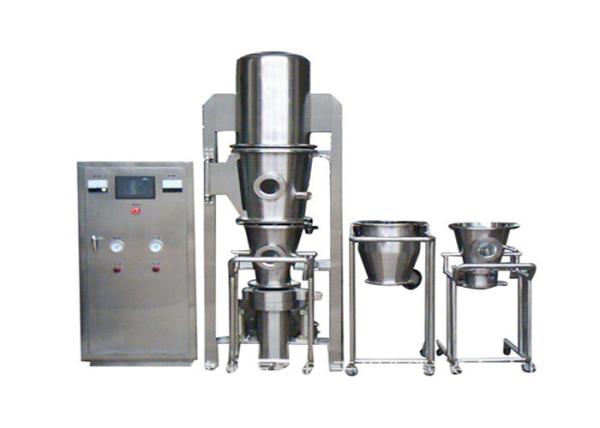

Multifunctional Fluid Bed Granulator

Name: Multifunctional Fluid Bed Granulator
Brand: JingSu ShengMan
Price: 20000 USD

Multifunctional Fluid Bed Granulator Manufactures

Brand Name : JingSu ShengMan

Model Number : FLG

Certification : CE and ISO9001

Place of Origin : China

MOQ : 1set

Price : USD20000-USD300000

Payment Terms : L/C, T/T

Supply Ability : 10sets

Delivery Time : 60-90days

Packaging Details : Plywood Cases

Condition : New

Warranty : 1 year

Voltage : Customized

Machine Type : Granulator

Heating System : Steam,Electronic,oil

Standard : GMP

Material : stainless steel

power of fan : 5.5-18.5 kw

dimension : requirement from customer

application : pharmaceutical, food, chemical

Contact Now

FLG solid preparation plastic recycling granulator machine or Wet granulator For Pharmacy in Latin America

DESCRIPTION

FLP multi-purpose granulating & coating machine integrates the atomizing, the drying, the granulating, the centrifugal pills making and the coating in one, and is used for the granulating, pills making and the coating (with many ingredients or different dosing) in industries of pharmaceutical, food or chemical, etc.

Multifunctional Fluid Bed Granulator

Technical Parameters

type		unit	10	30	45	60	90	120
dia of container		mm	700	1000	1100	1200	1400	1500
productive capacity		kg/batch	2.5-10	7.5-30	10-45	15-60	20-90	30-120
power of fan		kw	5.5	7.5	11	11	15	18.5
steam	pressure	Mpa	0.4-0.6
steam	consumption	Kg/h	35	60	140	160	180	240
compressed air	pressure	Mpa	0.6
compressed air	consumption	m3/min	0.6	0.9	0.9	1.1	1.3	1.5
noise		dB	No more than 75bt separated of fan
installation size for reference		H1(mm)	2790	3720	3720	3850	3950	4190
		H2(mm)	340	590	640	690	740	790
		H3(mm)	2570	3500	3500	3630	3720	3975
		φ1(mm)	700	1200	1300	1400	1500	1600
		φ2(mm)	250	280	280	280	280	315
		L(mm)	1250	1500	1550	1600	1650	1700
		B1(mm)	1160	1600	1760	1860	1960	2060
		B2(mm)	1860	2860	3060	3260	3460	3660

Scope of application:

1. Tablets, granules (granules), capsules.

2. Low sugar, no sugar, small dose of particles.

3. Slow release granules.

4. Instant food, drink granules.

5. Chemical particle preparation.

Multifunctional Fluid Bed Granulator

Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.

Multifunctional Fluid Bed Granulator
